Plot received power over a grid

This example shows how one can plot the received power map, i.e., the power received at each (x, y) coordinate as the sum of the power from each transmitter.

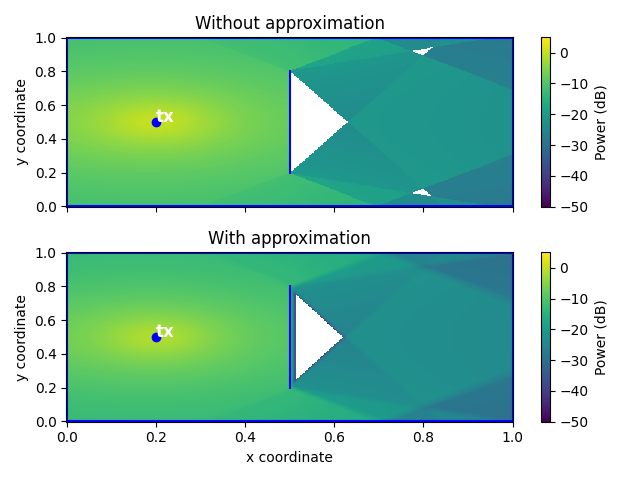

The first plot shows the power map when no approximation is used, and the second shows the power map, but when approximation is enabled (with default parameters, see defaults).

Imports

First, we need to import the necessary modules.

import jax
import jax.numpy as jnp
import matplotlib.pyplot as plt
from jaxtyping import Array, Float

from differt2d.scene import Scene
from differt2d.utils import P0, received_power

Scene

The following code will work with any scene, but be aware that large scenes may introduces a long computation time.

You can easily change the scene by modifying the following line:

scene = Scene.square_scene_with_wall()

Plot setup

Below, we setup the plot to contain two axes: one showing the power map without approximation, and one showing the power map using approximation.

fig, axes = plt.subplots(2, 1, sharex=True, tight_layout=True)

annotate_kwargs = {"color": "white", "fontsize": 12, "fontweight": "bold"}

key = jax.random.PRNGKey(1234)
X, Y = scene.grid(300)

for ax, approx in zip(axes, [False, True]):
    scene.plot(
        ax,
        transmitters_kwargs={"annotate_kwargs": annotate_kwargs},
        receivers=False,
    )

    P: Float[Array, "300 300"] = scene.accumulate_on_receivers_grid_over_paths(
        X,
        Y,
        fun=received_power,
        reduce_all=True,
        approx=approx,
        key=key,
    )  # type: ignore

    PdB = 10.0 * jnp.log10(P / P0)

    im = ax.pcolormesh(X, Y, PdB, vmin=-50, vmax=5, zorder=-1)
    cbar = fig.colorbar(im, ax=ax)
    cbar.ax.set_ylabel("Power (dB)")

    ax.set_ylabel("y coordinate")
    ax.set_title("With approximation" if approx else "Without approximation")

axes[-1].set_xlabel("x coordinate")
plt.savefig("power_map.png")  # doctest: +SKIP
